Beskrivning

Typ av produkt

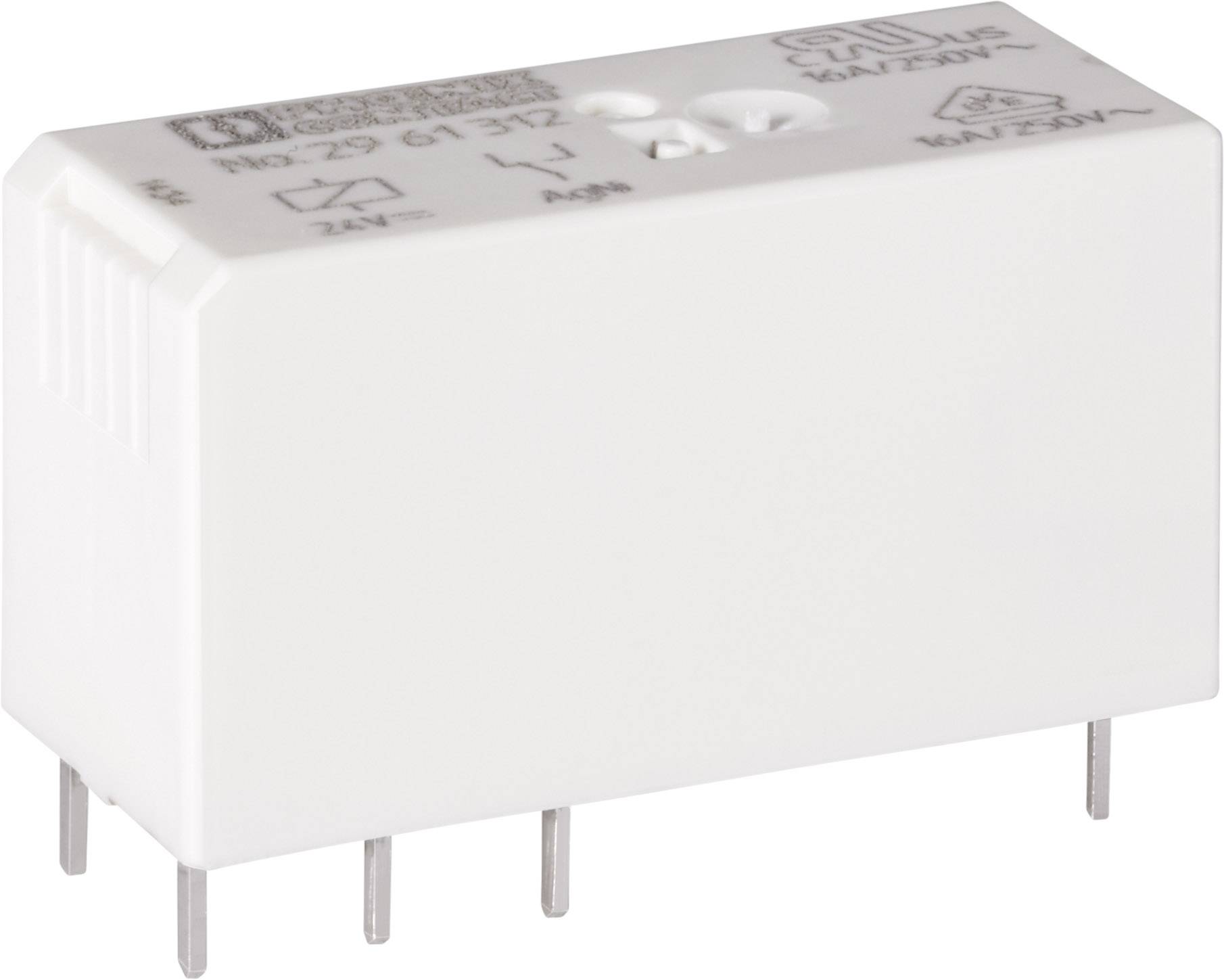

Kretskort-relä

Typ

REL-MR- 24DC/21-21AU

Nominell spänning spole

24

Kontrolläge

monostabil, 1 spole

Motstånd (spole)

1440

Kontakttyp

2 switch

Kontaktmaterial

AgNi + hårdförgyllning

Växelspänning (max.)

36

Växelström (max)

8

Max. bryteffekt

2000

Anslutning

Lödpin

Min. temperatur

-40

Max. temperatur

+85

Bredd

12.7

Höjd

29

Djup

15.7

Mått.

(B x H x D) 12.7 x 29 x 15.7 mm

Innehåll

1

Nominal current

0.017

Width

12.7

Height

29

Depth

15.7

With detachable clamps

FALSE

Drive, polarization

Polarity free

Drive, switching attitude

Mono stable

With forced-guided contacts

FALSE

Type of switch contact

Single contact

Complete with socket

FALSE

Type of electric connection

Other

Rated control supply voltage DC

15.6-59.52

Material of contact surface

Gold

Degree of protection (IP)

Other

With LED indication

FALSE

Voltage type for actuating

DC

Number of contacts as normally closed contact

0

Number of contacts as normally open contact

0

Number of contacts as change-over contact

2

Material of contact insert

Other
